▪ Downloading and Installing Ubuntu via Wubi

Wubi is an Ubuntu installer for Windows which is officially supported, allowing newcomers to Ubuntu (and Linux) to easily install or remove an Ubuntu Linux installation from within Windows (the Linux operating system itself doesn't run within Windows however!), and boot into Ubuntu via Windows' own boot menu. If you're new to Linux, this is a good way to introduce yourself to the operating system without having to worry about partitioning your hard disk, accidentally wiping out your existing Windows installation, or any other problems which could occur during a manual operating system installation or removal process.

So if you don't have Ubuntu installed already, and want to easily use both Windows and Linux side-by-side on your computer, visit the Wubi Homepage and click the large Download Now button.

Save the file 'wubi.exe' to a folder of your choosing; for the purposes of this guide, I'd recommend '<System_Drive>:\Downloads'. The following steps assume that this is where you've chosen to save the file.

Next, follow these steps:

Using Wubi to prepare your Ubuntu Linux installation

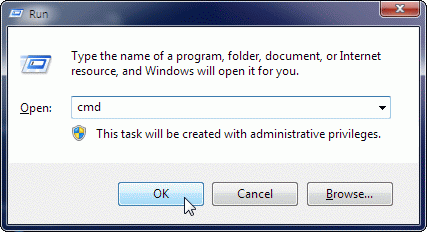

  1. Go to 'Start Menu > Run' and type 'cmd', and click OK:

    Screenshot

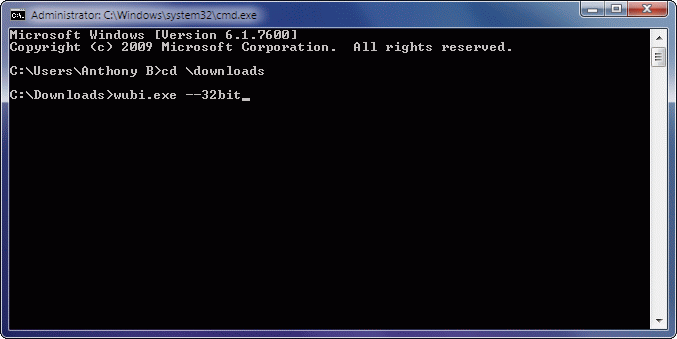

  2. For the next step, we'll use the Windows Command Prompt; this will prepare you for similar tasks we'll perform in Linux later on. Enter the following commands, hitting Return after each line:

    cd \downloads

    wubi.exe --32bit


    Screenshot

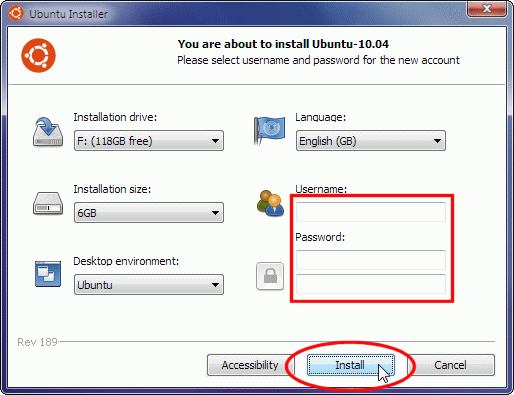

  3. When the Ubuntu Installer appears, leave the default options as they are unless you have a reason to change them, enter a username (your current Windows username will probably be chosen automatically), and enter a password in both boxes provided. You must remember your username and password, you'll be using these to login to your Ubuntu desktop, and may be prompted for your password when making changes to your operating system while in the Linux environment.

    Screenshot

  4. Now let the installer download the Ubuntu ISO (disc image) to your hard disk, which will be around 700MiB in size, let it prepare the installation, and then reboot your computer when prompted.


Next, we'll boot up in Linux rather than Windows, and finish the installation:

Finalising your Ubuntu Linux installation

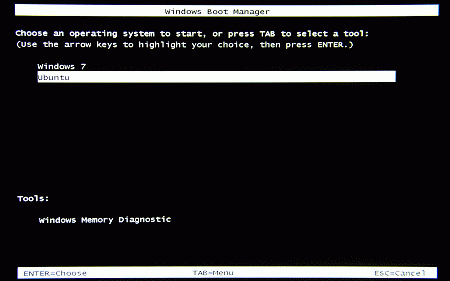

  1. When your computer reboots, you'll see you have a Boot Menu which you may not have had before, if you only had a single Windows installation previously. Before the countdown timer expires, select Ubuntu from the list, and hit Enter.

    Screenshot

  2. You'll now see some messages on screen, and the first will be:

    'Press 'ESC' to enter the menu ... x'
    .

    Don't press Escape, just let the countdown expire. Ubuntu's animated splash screen should then appear, and an automated installation process will be carried out. Just let this run it's course (it shouldn't take too long, possibly just a few minutes if your system is fast enough), and when done your computer will automatically reboot again.

  3. When you're presented with your new Boot Menu, select Ubuntu again, and this time you should eventually be presented with a rather nice graphical login screen. Enter the username and password you chose when you ran Wubi, pressing Enter each time.

▪ Updating Ubuntu

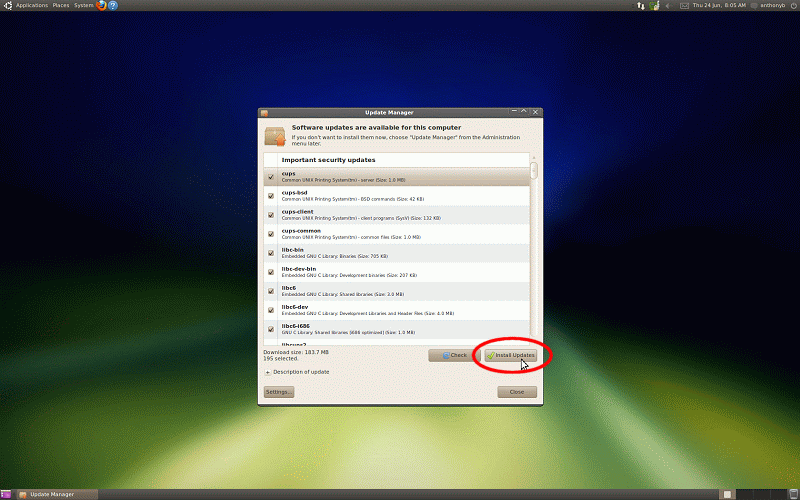

Hopefully, if Ubuntu is compatible with your system, you'll now be presented with the Ubunu Desktop (the GUI is called GNOME). Shortly after, you'll likely see the Update Manager window appear, asking you to update your Ubuntu installation. You should do so, in order to be up to date and to patch any security related problems. This is essentially Ubuntu Linux's equivalent of the Windows Update feature. Simply click the Install Updates button when this window appears (and enter your password when prompted):

Screenshot

The Update Manager will finish updating your installation shortly.

▪ Preparing Graphics Drivers - ATI Users

Next, we want to install some graphics drivers which will let you run openBVE with higher framerates. This guide assumes you're using either an ATI Radeon or NVIDIA GeForce graphics card.

ATI users can follow these steps (NVIDIA users, see further down):

Installing the ATI Catalyst Control Centre

  1. Click the Firefox icon on the GNOME Main Menu Bar (the top panel):

    Screenshot

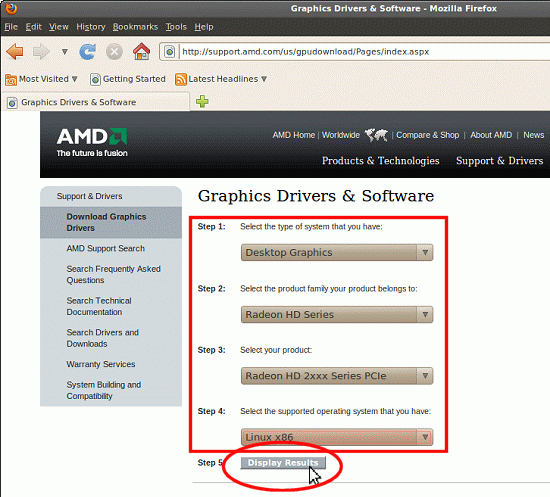

  2. Visit http://support.amd.com/us/gpudownload/Pages/index.aspx and choose your graphics card, select 'Linux x86' > 'Radeon', and click 'Display Results':

    Screenshot

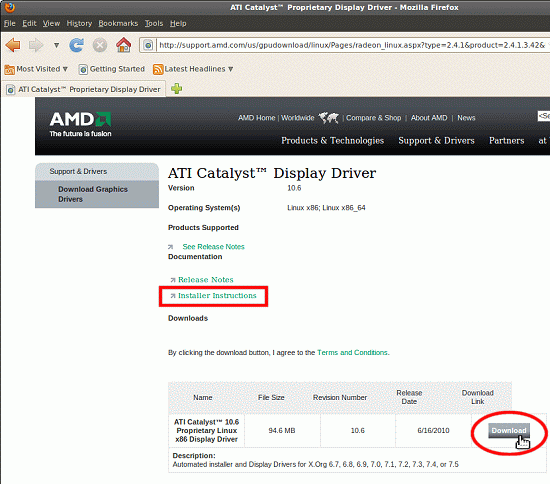

  3. Next, click the Download button on the resulting page, and save the 'ati-driver-installer-10-6-x86.x86_64.run' file to your hard disk (by default, your /home/username/Downloads folder). Also click the Installer Instructions link, which will open a PDF document which you can read through. This openBVE help guide will give you the necessary instructions to install the driver however:

    Screenshot

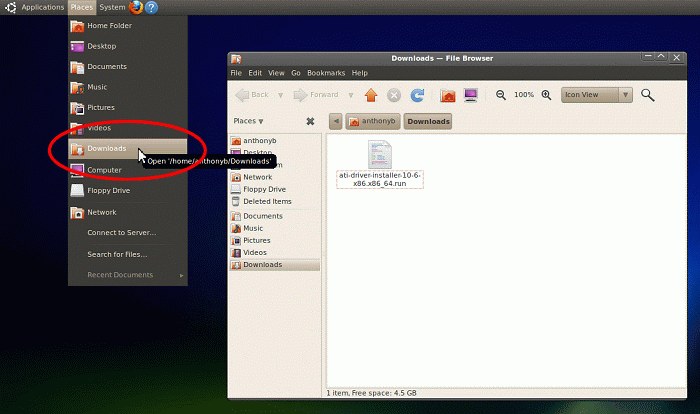

  4. Once the file is downloaded, it will likely be within your 'home/username/Downloads' folder. First, open this folder, by going to 'Places > Downloads' (you should see the driver there):

    Screenshot

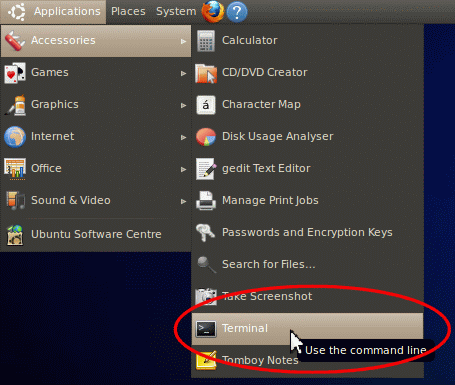

    Next, we need to run the installer, and for this, we need to use the Terminal (you can think of it as being the equivalent of the Command Prompt in Windows). On your Main Menu Bar, select 'Accessories' > 'Terminal':

    Screenshot

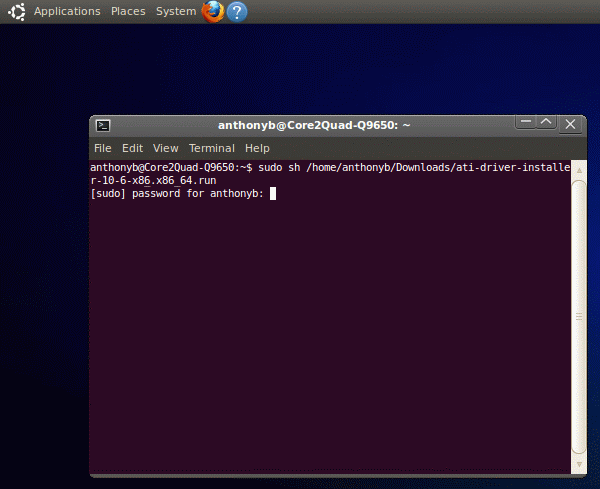

  5. Your desktop should now look as it does in the following screenshot. At the terminal prompt (which will be <username>@<computername>:~$ ), enter the following line (you can copy and paste the filename of the driver you downloaded by right-clicking it's icon, choosing Properties from the context menu, right-clicking the highlighted filename in the Name editbox, and selecting Copy. Then go to the terminal window, and press Ctrl+Shift+V to paste the filename where appropriate. Don't forget to replace <username> with your own username! Thus:

    sudo sh /home/username/Downloads/<replace_with_your_downloaded_driver_filename>

    Note: In Unix based operating systems, case sensitivity matters - the uppercase D in Downloads is important! The sudo (su "do") command lets you execute the installer as superuser (you can think of it as being like running an application as an Administrator in Windows), hence, you'll be prompted for your password; type it in, and hit Enter:

    Screenshot

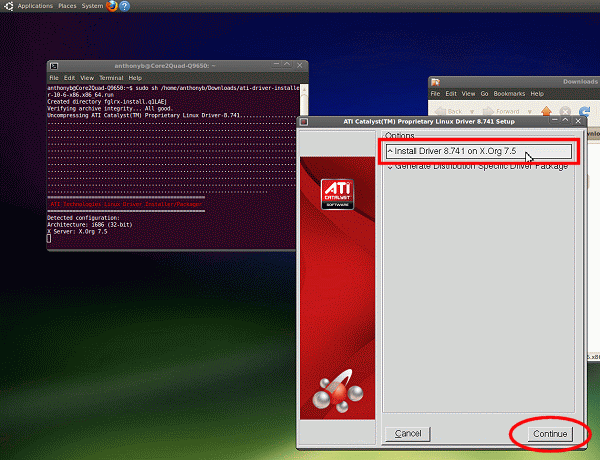

  6. Stuff will happen in the Terminal window, and after a few moments, the ATI Proprietary Linux Driver Setup window will appear. Select "Install Driver x.xxx on X.Org 7.4 and later releases", and click Continue:

    Screenshot

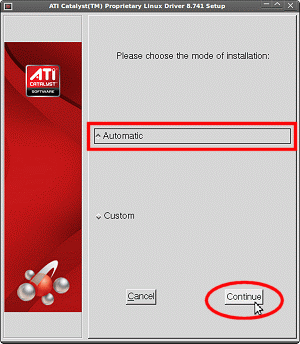

  7. Select 'Automatic', and click 'Continue':

    Screenshot

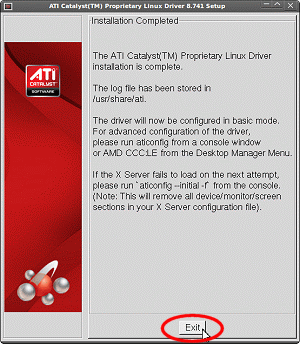

  8. The driver will now be automatically installed, and when done you'll see the following message (write it down if you like). Then, just click Exit:

    Screenshot

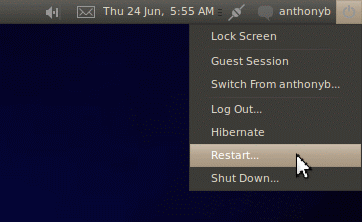

  9. Now, click on your username in the upper right of the screen, and restart your computer:

    Screenshot

The next time you start Ubuntu, hopefully you'll be successfully using your new graphics driver.



Next, you can configure your anti-aliasing and anisotropic filtering settings:

Setting anti-aliasing and anisotropic filtering via the ATI Catalyst Control Centre

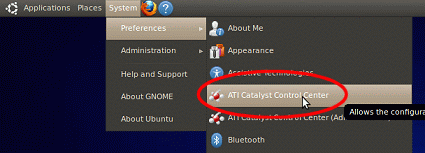

  1. From the GNOME Main Menu Bar, select 'ATI Catalyst Control Centre':

    Screenshot

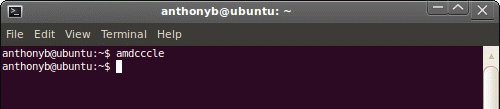

  2. If you cannot find a menu item named 'ATI Catalyst Control Center', instead, you can open a terminal window, type the following command, and press Enter:

    amdcccle


    Screenshot

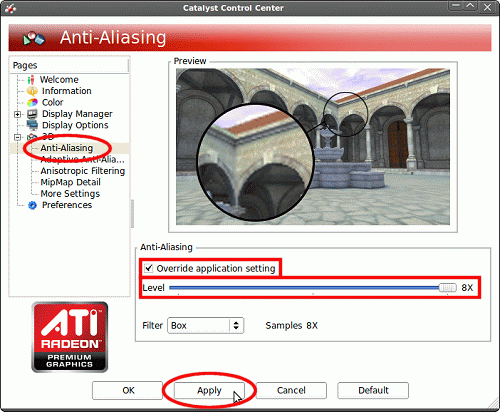

  3. When the Catalyst Control Centre appears, click the Anti-Aliasing entry on the left, check 'Override application setting', and choose your level of anti-aliasing. Click 'Apply' when done:

    Screenshot

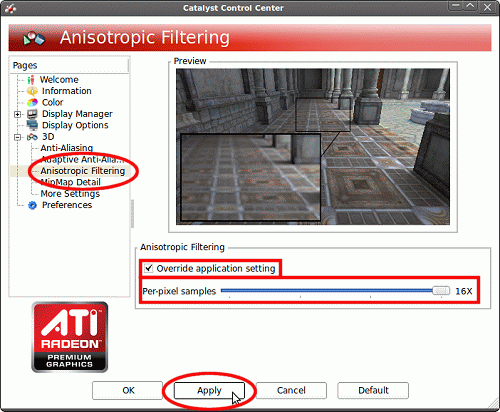

  4. Click the Anisotropic Filtering entry on the left, check 'Override application setting', and choose your level of anisotropic-fltering. Click 'Apply' when done:

    Screenshot

Now click OK, to exit the Catalyst Control Centre.


Note: The more powerful your graphics card, the higher these settings can be without the performance penalty being too great--you may wish to experiment with the settings once you've seen how openBVE runs with the selected levels of anti-aliasing and anisotropic filtering. If there is any performance degradation and you find it unacceptable, repeat the above steps and select lower levels of anti-aliasing and anisotropic filtering, and then try openBVE again.


▪ Preparing Graphics Drivers -- NVIDIA Users

NVIDIA users can follow these steps to install the NVIDIA graphics driver:

Installing the NVIDIA graphics driver

  1. From the GNOME Main Menu Bar (the top panel), select 'System' > 'Administration' > 'Hardware Drivers':

    Screenshot

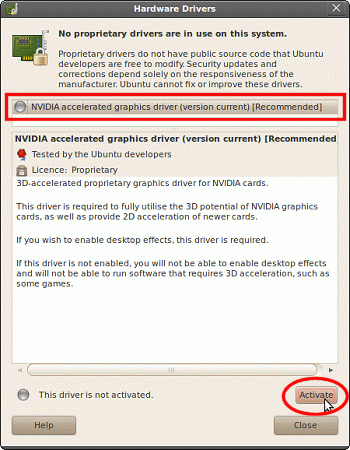

  2. The Hardware Drivers window will appear. Choose the version marked [Recommended], and then click 'Activate':

    Screenshot

    You may now be prompted for your password; enter it and continue.

  3. Now, click on your username in the upper right of the screen, and restart your computer:

    Screenshot



The next time you start Ubuntu, hopefully you'll be successfully using your new driver.



Next, you can configure your anti-aliasing and anisotropic filtering settings:

Setting anti-aliasing and anisotropic filtering via NVIDIA X Server Settings

  1. From the GNOME Main Menu Bar, select 'System' > 'Administration' > 'NVIDIA X Server Settings':

    Screenshot

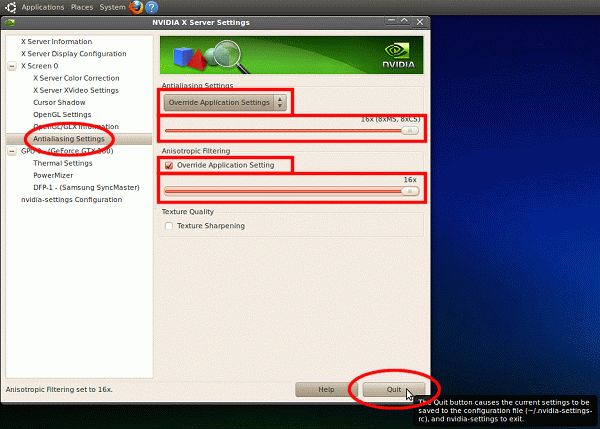

  2. Click the 'Anti-Aliasing Settings' entry on the left, place a tick in both 'Override Application Setting' checkboxes, and choose your level of anti-aliasing and anisotropic filtering. Click 'Quit' when done:

    Screenshot

Note: The more powerful your graphics card, the higher these settings can be without the performance penalty being too great--you may wish to experiment with the settings once you've seen how openBVE runs with the selected levels of anti-aliasing and anisotropic filtering. If there is any performance degradation and you find it unacceptable, repeat the above steps and select lower levels of anti-aliasing and anisotropic filtering, and then try openBVE again.



You can now return to the openBVE Help Contents page or the Railsimroutes.net homepage.
